An innovative ROV-system in compact package
Mini ROV Technology: ACRO and SYNCRO survey
ACRO - Inspection
Patented technology GB2617634
The Acro mini-ROV is a cost effective, low maintenance and extremely flexible ROV-system. The ROV is packed with the latest groundbreaking technology and is capable of operating in both shallow water and at sea with substantially reduced risk, cost and time spent per survey.
With a successful history of conducting inspection according to international regulations and standards, it eliminates the requirement for larger inspection class ROVs.
Download the ACRO ROV Datasheet now to explore all the details
-
Standard Equipment:
-
Options:
Ideal for shallow water operations
The ACRO mini ROV is a small ROV with a weight of approximately 40 kg, depending on sensor spread and equipment. The ROV is designed to operate in all orientations and has 6 degrees of freedom.
The ROV comes with a power supply, tether, and survey computers. The ACRO is ideal for shallow water operations and is field proven with more than 60 jacket CP inspections and GVI / CVI operations in Angola between 2022 and 2023.
Work and LARS from platform

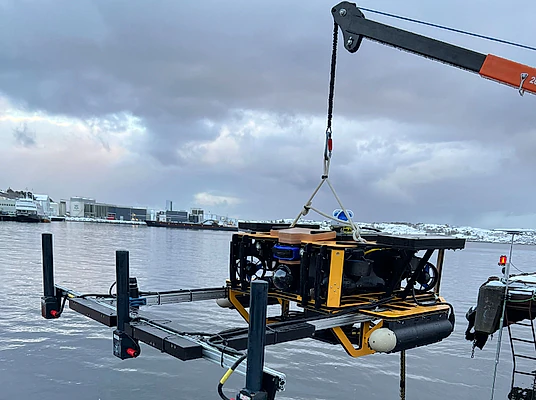

The ACRO ROV can be launched from the platform deck or the boat landing by use of a small crane or a pulley system.
Depth
Ideal working depth is from 2 to 100 meters, but the ROV is rated for 300 meters.
Work-space requirements

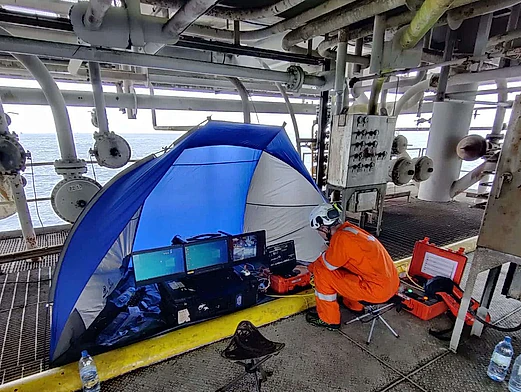

The ACRO ROV can be controlled by a single laptop computer and hand controller. The ROV power requirements is 16A at 230V.
Personell/ Operations

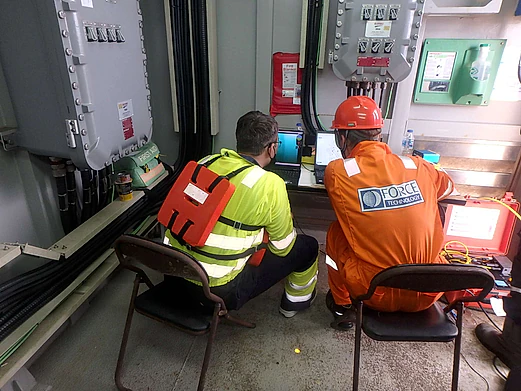

BeyonC AS offers ROV supervisors, pilots, certified FIGS personnel, and training for local pilots. FORCE Technology Norway provides FIGS training for local CP inspectors.
Proven technology with long track record
With over 60 jackets inspected at API Level-2 under poor visibility and challenging currents, we conducted comprehensive GVI and CP inspections.
6 DOF flying capabilities

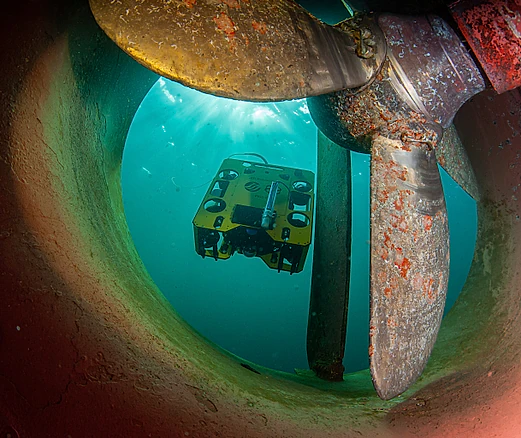

The ACRO ROV's flying capabilities allow it to access all inspection areas and precisely position tools and sensors wherever they are needed.
Mobilisation / deployment

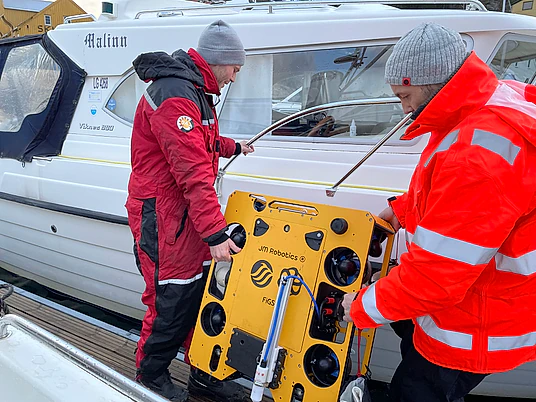

The small size of the ACRO makes deployment easy. It can be deployed by hand from a small vessel. With the use of a running latch, deployment from asset or larger vessels by use of a crane is straight forward.
Crew: only need 2 people
The small size and simple operation of the ACRO means you can run an inspection or CP survey with a very small crew. Only two people are required for the ROV and inspection operations.
"In addition to human divers and large-sized remote-operated vehicles (ROVs), we now have another option: mini-ROVs."
"FORCE Technology has joined forces with tech company BeyonC, to use mini ROVs that combined with our own world leading FiGS® sensor technology and it’s unique non-contact capabilities, provides accurate data regarding Cathodic Protection (CP)."
"Tailor-made ROV for FiGS inspection: for our customers who need customized ROV solutions."
SYNCRO - Survey
Patented technology GB2617634

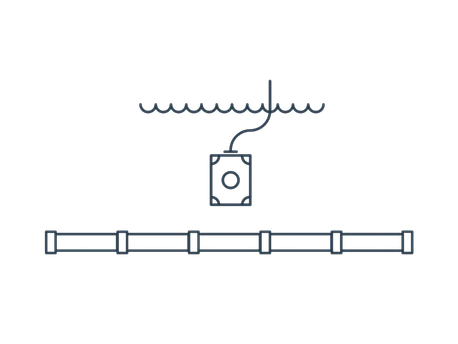

It´s a small survey ROV for mid- to shallow water pipeline CP survey of exposed and buried pipelines (0-50 m depth)

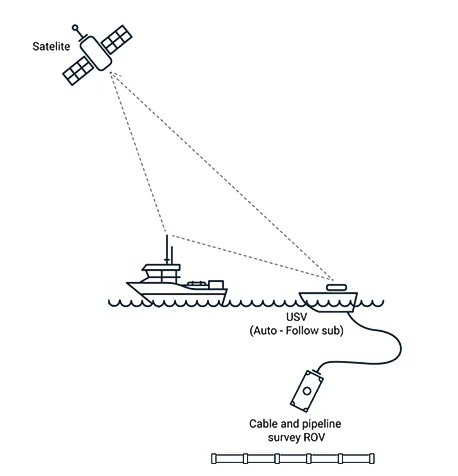

In collaboration with JM Robotics, BeyonC is developing a specialized survey ROV for long distance pipelines and power cables. This survey ROV will be fully integrated with sensors to provide accurate survey data for both buried and exposed subsea assets.
- Battery operated ROV and Unmanned Surface Vessel
- Use of USV eliminates the need for a DP vessel
- Approximate weight: 150 kg
- Full survey spread with pipetracker
Download the BeyonC mini ROV Datasheet now to explore all the details
Under development, ready for service in 2026
-
Standard Equipment:
-
Options:
